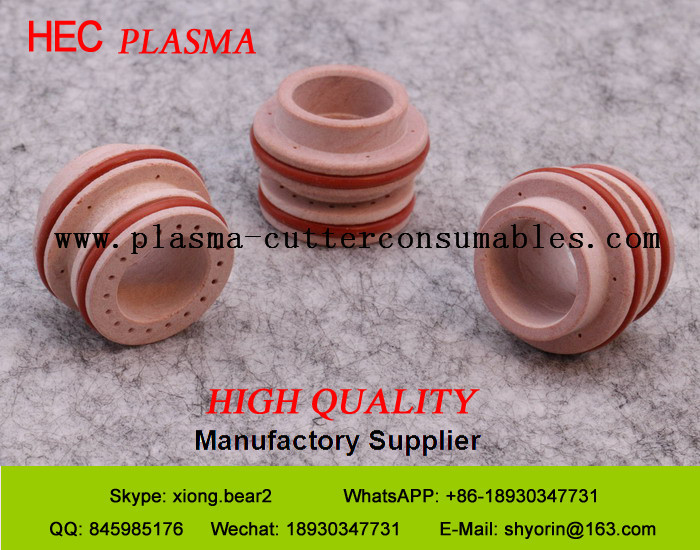

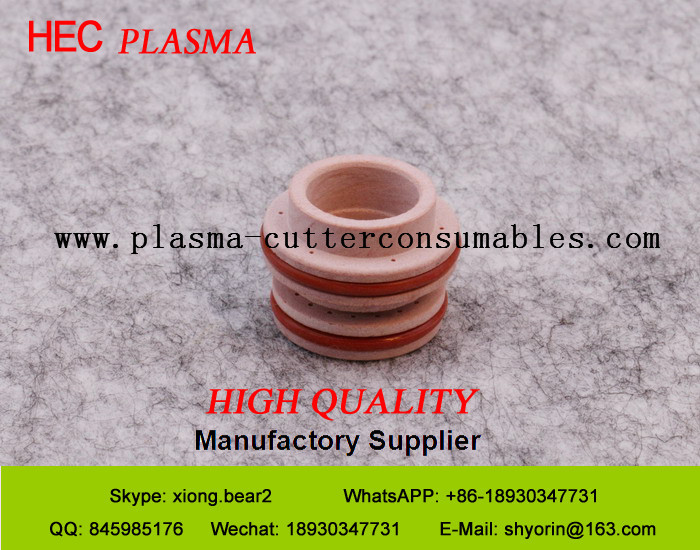

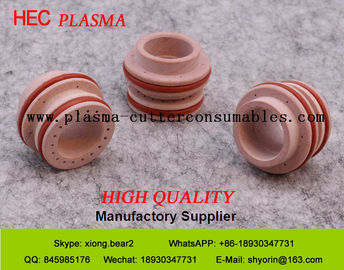

HT4400 Swril Ring, Plasma Cutter Swril Ring 120791, Plasma Cutting Swirl Ring
1. bahan habis pakai untuk HT4400, HPR400XD, HPR260XD, HPR130XD, HPR260, HPR130, HSD130, HD3070, HD4070, HT2000, MAX200, POWERMAX1650, POWERMAX1250, POWERMAX65, POWERMAX85, POWERMAX45, POWERMAX30 dan sebagainya.
2Kjellberg bahan habis pakai untuk HiFocus80i, HiFocus100i, HiFocus130i, HiFocus160i, HiFocus280i, HiFocus360i, HiFocus440i dan sebagainya.
3Bahan habis pakai untuk PT-25, PT-36, PT-37, PT-600, PT-15XL, PT-19XL, PT-31XL dan sebagainya.
4. bahan bakar Koike untuk SUPER 400, SUPER 400 PLU.
5. Komatsu plasma bahan bakar untuk 30KW, 60KW 3082, 3084, 3086, 6082, 6084.
| Mesin | HEC NO. | REF Tidak. | Deskripsi |
|
|
H04785 | 120785 | Elektrode, oksigen, 100 ampere. |
| H04793 | 120793 | Elektrode, Oksigen, 200Amp | |
| H04802 | 120802 | Elektrod, oksigen, 300Amp | |
| H04810 | 120810 | Elektrod, oksigen, 400Amp. | |
| H04855 | 120855 | Elektrode, nitrogen, 200/400Amp | |
| H74783 | 120783 | Swirl Ring, Oxygen, 100Amp. | |
| H74784 | 120784 | Swirl Ring, Oxygen, 100Amp, CCW | |
| H74791 | 120791 | Swirl Ring, Oxygen, 200Amp | |
| H74792 | 120792 | Swirl Ring, Oxygen, 200Amp, CCW | |
| H74913 | 120913 | Swirl Ring, Oksigen, 300Amp | |
| H320 | 120914 | Swirl Ring, Oksigen, 300Amp, CCW | |
| H74939 | 120939 | Swirl Ring, Oksigen, 400Amp | |
| H74940 | 120940 | Swirl Ring, Oksigen, 400Amp, CCW | |
| H74853 | 120853 | Swirl Ring, nitrogen, 200/400Amp | |
| H14777 | 120777 | Nozzle, oksigen, 100Amp. | |
| H14778 | 120778 | Nozzle, oksigen, 100Amp, CCW | |
| H14787 | 120787 | Nozzle, oksigen, 200Amp. | |
| H14788 | 120788 | Nozzle, oksigen, 200Amp, CCW | |
| H14794 | 120794 | Nozzle, oksigen 300/nitrogen 200Amp | |
| H14795 | 120795 | Nozzle, Oksigen 300/nitrogen 200Amp, CCW | |
| H14934 | 120934 | Nozzle, oksigen, 400Amp | |
| H14935 | 120935 | Nozzle, oksigen, 400Amp, CCW | |
| H14856 | 120856 | Nozzle, nitrogen, 400Amp | |
| H14857 | 120857 | Nozzle, nitrogen, 400Amp, CCW | |
| H44786 | 120786 | Cap penahan 100/200/300/400Amp | |
| H44907 | 120907 | Tahan Cap,100/200/300/400Amp Dengan Tab HIS | |
| H44786 | 120786 | Cap penahan 100/200/300/400Amp | |
| H44984 | 120984 | Cap Retaining,100/200/300/400Amp di bawah air | |
| H84651 | 120651 | Tubuh utama obor | |
| H34025, H44025, H44026, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44027, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44029, H44029, H44029, H44029, H44029, H44029, H44029, H44029, H44029, H44029, H44029, H44029, H44029, | 120025 | Tabung pendingin air | |
| H34028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44028, H44029, H44029, H44029, H44029, H44029, H44029, | 044028 | O-ring | |
|
|
H04285 | 020285 | Elektrod,N2 |
| H04663 | 020663 | Elektrode, oksigen, 260Amp | |
| H04630 | 120630 | Elektrode, Oksigen, 340Amp | |
| H74039 | 020039 | Swirl Ring,N2,120/166/187 | |
| H74040 | 020040 | Swirl Ring,N2 | |
| H74623 | 020623 | Swirl Ring, oksigen | |
| H74135 | 120135 | Swirl Ring, Oksigen, 340Amp | |
| H14281 | 020281 | Nozzle, N2 | |
| H14282 | 020282 | Nozzle, N2 | |
| H14283 | 020283 | Nozzle, N2 | |
| H14284 | 020284 | Nozzle, N2 | |
| H14086 | 020086 | Nozzle, oksigen | |
| H44580 | 020580 | Penangguhan,N2 | |
| H44579 | 020579 | Batas pengendalian | |
| H44185 | 120185 | Penjaga tutup, oksigen, 50Amp |
Dukungan Teknis:
Anti interferensi dari pasokan listrik plasma
Sumber interferensi utama dari sistem kontrol numerik plasma adalah bagian pasokan listrik.Transformator frekuensi tinggi tegangan sisi sekunder hingga 3000 - 6000V, frekuensi denyut nadi 100 Hz, gangguan radiasi dan polusi jaringan (interferensi) sangat kuat, dan kontaktor AC / DC arus tinggi dan relays dari kesalahan pada jaringan akan menyebabkan lonjakan.Biasanya mesin pemotong plasma busur disebabkan oleh kekacauan internal komputer, tidak bisa memotong normal, mesin pemotong CNC pertama dan bahkan memerlukan pengguna untuk memulai busur dan kemudian memulai komputer, menjalankan program sistem CNC.Ini tidak hanya membuat operasi rumit, komputer tidak sepenuhnya dimanfaatkan, tetapi juga serius mempengaruhi umur komputer, sehingga penekanan gangguan daya plasma,mengurangi polusi ke jaringan listrik adalah masalah utama, langkah-langkah khusus:
